Drawbridge Levellers and Bridging Plates

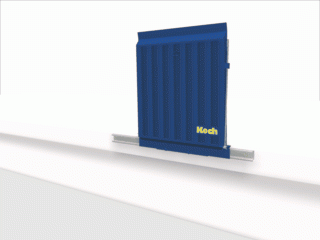

Spring-driven drawbridge levellers

made of steel or aluminium, fixed-position or side-sliding design
types: FBSS, FBSV, FBAS, FBAV


  • Counterbalanced via a maintenance and wear-free spring system (max. operating load according to DIN EN 1398: 300 N)

  • Easy operation with integral lateral operating lever

  • Automatic parking device to prevent uncontrolled movement

  • Lip plate provides for slight set angle

  • Support depth 120 / 200 mm of steel/aluminium levellers

  • Guide profile track, for side sliding models: bright rolled or zinc coated steel

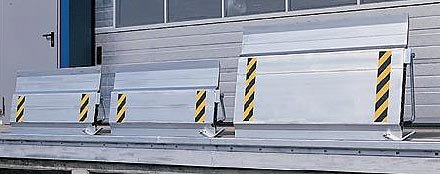

Aluminium drawbridge leveller type KBS

Side sliding

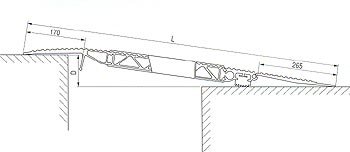

Typ Überfahrlänge (L)mm Überfahrbreite mm Überbrückung mm Tragkraft daN (kp) Gewicht kg
KBS 0 410 mm 1250 mm +30/ -70 4000 19 kg
KBS 12 535 mm 1250 mm +45/ -90 4000 24 kg
KBS 13 785 mm 1250 mm +75/ -120 4000 31 kg
KBS 2 910 mm 1250 mm +90/ -135 4000 36 kg
KBS 4 410 mm 1500 mm +30/ -70 4000 23 kg
KBS 14 535 mm 1500 mm +45/ -90 4000 28 kg
KBS 15 785 mm 1500 mm +75/ -120 4000 38 kg
KBS 6 910 mm 1500 mm +90/ -135 4000

44 kg
  • Side sliding in a zinc coated guide profile; not demountable in the conventional design
  • Guide profile welded on the front edge of the loading platform (edge of the loading platform of U-120 profile according to DIN 1026 or L-120 profile according to DIN 1029)
  • Guide profile limited to leveller width, if requested as non-sliding model
  • Automatic fall protection to prevent accidents, lateral return lever for actuation

Bridging plate, AWB type

Side sliding

Typ Länge Breite Tragkraft Gewicht
AWB 508 750 mm 1250 mm 600 kp 20 kg
AWB 510 1000 mm 1250 mm 600 kp 26 kg
AWB 512 1200 mm 1250 mm 600 kp 30 kg
AWB 1008 750 mm 1250 mm 1200 kp 24 kg
AWB 1000 1000 mm 1250 mm 1200 kp 30 kg
AWB 1012 1200 mm 1250 mm 1200 kp 37 kg

This mobile bridging plate is universally applicable to un-/load vehicles using lift stackers, roll containers, sack barrows etc.

  • erleichtert den Verladevorgang
  • hilft Unfälle zu verhindern
  • leichter Transport
  • rutschsichere Lauffläche
  • geringes Eigengewicht
  • zwei Grifflöcher zum Tragen
  • Anschlagwinkel
  • zur Sicherung gegen Abrutschen

Bridging plate, HF type

With movable access ramp tongue

Typ Länge Breite Tragkraft Gewicht
HF 00 1235 mm 1250 mm 4000 kp 52 kg
HF 02 1485 mm 1250 mm 3500 kp 61 kg
HF 04 1735 mm 1250 mm 3000 kp 70 kg
HF 06 1985 mm 1250 mm 2000 kp 82 kg
  • Fixed lip plate support
  • Movable access ramp tongue; the rubber profile at the bottom side prevents roll containers from sliding (see illustration below)
  • Anti-slip ramp surface
  • Weather resistant
  • Side guides for additional anti-slip protection
  • Accessories: Transport trolleys, fork lift receptacle or lateral fixed castor for heavy loads (without illustration)





fair, flexible, functional
technically skilled - and fast
contact us

Drawbridge Levellers

Drawbridge levellers are available in various designs. The drawbridge levellers already differ as to the material they are made of. You can choose between steel or aluminium constructions. The spring-driven support enables you to easily operate the drawbridge leveller via the lateral operating lever. The counterbalance within the spring system is easily achieved and wear-free. The drawbridge leveller contains an automatic parking device that prevents the drawbridge from falling down accidentally provoking major accidents. The fact that the lip plate is slightly angled, makes it easier for your staff to un-/load trucks. You can either choose a fixed-position version or a side-sliding model to make operation easier and even more convenient. Thanks to the drawing bridge mechanism it is sufficient to let the truck stop keep a little more distance to the drawing bridge.

We particularly recommend to use drawbridge levellers as loading ramps if the  loading ramps are outside the warehouses. Drawbridge levellers enable a much more flexible handling of approaching trucks. If required, we will provide you with a bridging plate or loading ramps that easily rest on the cargo area of the truck and can also be easily stored in the warehouse. For further information on loading ramps, drawbridge levellers as well as dock shelters, please contact us for your personal consultation.
