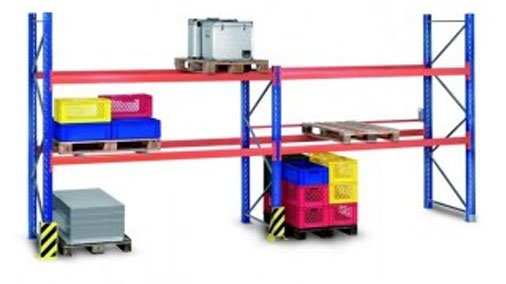

Pallet Shelving Units

Bolt-together system / boltless system

Technical Data Pallet Shelving Units

Loading capacities:

Beam loadings: up to 4500 kg per pair
Bay loads: up to 24,500 kg (depending on the configuration)
All specifications apply for uniform load distribution.

Dimensions:

Frame heights: 2,106 up to 7,776 mm
Bay depths: 750, 900 and 1100 mm
Bay width: 800, 2200, 2700, 3300 and 3600 mm
Further dimensions upon request.

Rack outer dimensions:

Widths: Basic rack + 200 mm
Widths: Add-on rack + 100 mm
Depth: see above

Design:

Support frame disassembled upon delivery.

Support carrier (used in pairs) with welded three-fingered claws, incl. retainer. Height of support carrier adjustable at 70 mm intervals, boltless. Extras available.

Please send us your requirements so that we can promptly supply you with an advantageous quote.
